Solid Steel Rotor in Induction Motors: Mechanical Strength at High Speed and Correct Selection

The vast majority of asynchronous motors run with a squirrel-cage (short-circuited bar) rotor; this rotor, in which aluminium or copper bars are joined by short-circuit rings, is a proven and economical structure. In applications requiring very high speed, however, the mechanical strength limits of the squirrel-cage rotor are reached. It is precisely at this point that the massive (solid) steel rotor, the solid rotor, comes into play. Machined from a single piece of solid steel, this rotor contains no bars, cage or laminated stack, so it is extremely robust, well balanced and resistant to high peripheral speeds. This article covers the working principle of the massive/solid steel rotor in asynchronous motors, its mechanical superiority in high-speed applications, its efficiency and torque behaviour compared with the squirrel-cage rotor, its place in turbo-compressor and high-speed applications, the thermal-mechanical balance and the correct selection criteria, from a HEM Motor engineering perspective.

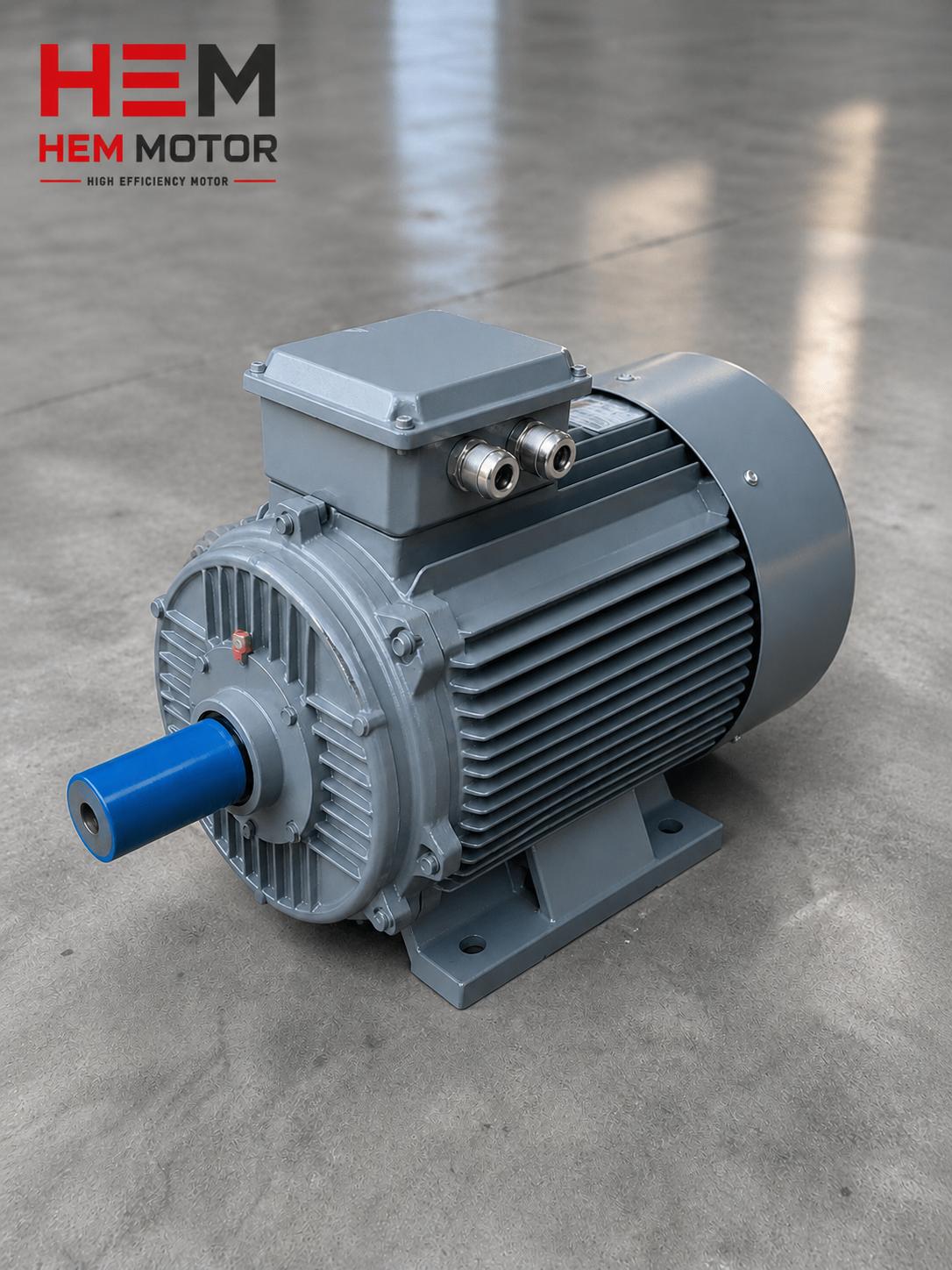

What Is a Solid Rotor and How Does It Work?

A massive steel rotor is, as the name suggests, a single-piece solid steel cylinder. In a classic asynchronous rotor the rotating magnetic field induces current in the rotor bars, and this current produces torque. In a solid rotor there are no bars; the induced currents (eddy currents) circulate directly within the steel mass. The steel both carries the magnetic flux and serves as the current path. This seemingly simple structure provides a major mechanical advantage: there is no bar that can loosen, no short-circuit ring that can crack and no laminated-stack region that can be thrown off by centrifugal force. The entire mass rotates as one.

For this reason the solid rotor maintains its structural integrity even at very high speeds and large diameters. At high speed centrifugal force pushes the bars outward; in a squirrel-cage rotor this means a risk of bar displacement or ring rupture. As a solid rotor has no such weak point, the rotor peripheral speed (tip speed) can go much higher. This very property makes the solid rotor attractive for turbo-machines and high-speed drives.

Mechanical Strength at High Speed

The greatest challenge a rotor faces in high-speed applications is mechanical stress. As speed rises, centrifugal force grows with the square of speed, forcing every component of the rotor outward. In a squirrel-cage rotor, the bond between the bars and the laminated stack, the ring-bar braze/weld regions and the stack itself fatigue under this force. Above a certain peripheral speed this structure is no longer safe. In a solid rotor the single-piece steel mass withstands stress homogeneously up to the material's yield limit; there is no interface that can separate. This allows much higher speeds at the same diameter, or much larger diameters at the same speed.

The second important advantage is dynamic balance. A single-piece machined rotor is balanced far more easily and durably than a barred rotor, because the mass distribution is homogeneous from the start and no bar-induced imbalance forms during operation. Since even a small imbalance turns into a large vibration force at high speed, this superiority of the solid rotor translates directly into gains for vibration and bearing life. The solid rotor also manages thermal expansion more predictably, because there is no interface of multiple materials with different expansion coefficients.

Solid Rotor vs Squirrel-Cage Rotor Comparison

The table below compares the basic properties of the massive steel (solid) rotor with the classic squirrel-cage rotor. The aim is not to say which is better but to show which is correct in which application.

The basic trade-off seen from the table is this: the solid rotor is superior in mechanical strength and balance but falls behind the squirrel-cage rotor in efficiency and power factor. The reason is that eddy currents follow dispersed paths within the steel mass and produce more heat (loss) along those paths. In a squirrel-cage rotor the current flows in low-resistance conductor bars and the loss is lower.

Efficiency and Torque Behaviour: Why Different?

The answer to why the solid rotor's efficiency is lower lies in the current path. In a squirrel-cage rotor the conductor bars carry the current along a low-resistance, predictable path; rotor losses are limited and efficiency is high. In a solid rotor the eddy currents concentrate in a region near the steel surface (because of the skin effect) and flow in a higher-resistance medium. This produces more heat and lowers efficiency. The same cause also pulls down the power factor. In return, the torque-speed curve is flatter and smoother in the solid rotor; instead of a sharp peak torque it provides a stable torque over a wide speed range. This smooth character can become an advantage in high-speed applications that need precise speed control.

To improve performance, solid rotors are often not pure; their surface is improved with copper plating, slitting (slotting) or conductive end rings to better the eddy-current path. These hybrid approaches aim to bring the solid rotor's efficiency closer to that of the squirrel-cage rotor while preserving its mechanical strength. Even so, reaching full squirrel-cage efficiency is generally not possible; this is a conscious price paid for high-speed endurance.

Turbo-Compressor and High-Speed Applications

The true home of the solid rotor is high-speed machines where the speed rises far above the standard grid frequency. Turbo-compressors, high-speed blowers, some centrifugal machines and special test rigs fall into this category. In these applications the motor is usually fed by a frequency drive (VFD) and can run at an output frequency far above the grid frequency, up to tens of thousands of rpm. At such a speed a classic squirrel-cage rotor is not mechanically safe; the solid rotor, however, maintains its structural integrity. Furthermore, in high-speed machines the rotor is often connected directly to the driven machine (for example the compressor impeller); this makes perfect balance of the rotor mandatory, and the solid rotor's balance superiority gains value exactly here.

Cooling is also a critical topic in high-speed drives. The extra eddy-current loss the solid rotor produces turns into heat, and this heat must be removed from the rotor. For this reason advanced cooling (forced air, a water-cooled exchanger or internal rotor air channels) is often used in high-speed solid-rotor motors. The thermal-mechanical balance is the most delicate topic in the design of these motors, and the correct solution is application-specific.

Thermal-Mechanical Balance and Correct Selection

In a solid-rotor motor the engineering decision is always about striking the balance between mechanical strength and thermal performance. High speed mechanically requires a solid rotor, but the same solid rotor produces more heat; if this heat is not cooled correctly, the rotor expands, bearing clearances change and vibration rises. For this reason the selection is made by looking not only at speed but at the cooling method, duty type, drive compatibility and target efficiency together. The points below guide a correct selection:

• First determine whether the speed truly exceeds the mechanical limit of a standard squirrel-cage rotor.
• Build into your planning that your efficiency and power-factor targets will be lower by the nature of the solid rotor.
• Choose the cooling method (forced air/water) according to the target speed and continuous-duty condition.
• Assess VFD compatibility together with output frequency and vibration tolerances.
• Where the rotor connects directly to the driven machine, clarify the balance class and coupling compatibility.

When Is a Solid Rotor Right, and When Not?

A solid rotor is not the right choice for every application; on the contrary, in most general-industry applications the squirrel-cage rotor is more efficient and economical. In pumps, fans, conveyors and general drives a standard (squirrel-cage) asynchronous motor is by far the correct choice; in these applications the speed is in the region the squirrel-cage rotor easily withstands and efficiency is always a priority. The solid rotor makes sense only when the speed exceeds the squirrel-cage rotor's safe mechanical limit, when very high peripheral speed is required, or in special designs where the rotor is integrated directly with a high-speed driven machine.

Another case is extreme environment and endurance requirements: the mechanical robustness of the single-piece steel rotor can also be a reason for preference in some special applications with very heavy impact or high temperature. Yet even in these exceptional cases the efficiency price must be an acceptable engineering choice. In short, the solid rotor is a solution belonging to the high-speed niche where mechanical strength takes priority over efficiency. The correct decision comes from clearly defining the application's real speed and endurance needs.

Slip, Skin Effect and Magnetic Behaviour

To understand the electrical behaviour of the solid rotor, the concepts of slip and skin effect must be considered together. In an asynchronous motor the rotor turns slightly behind the rotating field; this difference is the slip and is the basis of torque production. In a squirrel-cage rotor the slip is typically small and efficiency is high. In a solid rotor the induced eddy currents enter a complex interaction with the steel's magnetic permeability and conductivity. As frequency rises, the skin effect pushes the currents toward the surface of the steel; this narrows the effective current-carrying cross-section and raises the effective resistance. As a result, the slip and rotor losses of the solid rotor are higher than those of the squirrel-cage rotor.

This magnetic behaviour is in fact a lever for the designer. The steel alloy, surface treatment, slot geometry and conductive coating where present are used to tune the eddy-current path and therefore the torque-efficiency balance. Special steels with high magnetic permeability carry the flux more efficiently, reducing the loss somewhat. For this reason two solid-rotor motors, even of the same size, can perform markedly differently depending on material and surface design. Choosing the right supplier means finding the product in which these engineering details are solved to suit the application.

Maintenance, Life and Reliability

One of the most appreciated aspects of the solid rotor is the reliability brought by its mechanical simplicity. As there are no bars, rings or complex laminated stack, typical rotor faults such as loosening over time, bar fracture or cage cracking do not occur in a solid rotor. This is a major advantage especially in high-speed, continuously running critical machines, because such faults are usually sudden and destructive. The single-piece steel rotor is mechanically an almost "fault-free" component, and maintenance focuses more on bearings, the cooling system and balance.

On the other hand, if the heat the solid-rotor motor produces is not managed correctly, bearing life can shorten; for this reason maintenance of the cooling system (forced-fan filter, cleaning of the water-cooling line) must not be neglected. Bearing selection is also critical in high-speed applications; special high-speed bearings or magnetic bearings are often used. The general principle is this: the solid rotor makes the rotor itself reliable, but the surrounding systems (cooling, bearings, balance) must be planned meticulously. This holistic approach ensures the long, trouble-free operation of a high-speed drive.

Frequently Asked Questions

Why is a solid-rotor motor less efficient than a squirrel-cage rotor?

Because in a solid rotor the current circulates as eddy currents within the solid steel mass instead of in low-resistance conductor bars. Due to the skin effect these currents concentrate in a high-resistance region near the surface and produce more heat (loss). This loss lowers both efficiency and power factor. Efficiency can be improved with methods such as surface plating or slotting, but the squirrel-cage rotor level is generally not reached.

What is the main advantage of a solid rotor?

Mechanical strength and balance. Since a single-piece steel rotor has no bar that can loosen, no ring that can crack and no laminated-stack region that can be thrown off, it safely withstands very high speeds and peripheral speeds. It is also balanced easily and durably; this reduces vibration at high speed and extends bearing life. That is why it is preferred for turbo-compressors and high-speed machines.

Is a solid rotor needed for an ordinary pump or fan?

No. In general-industry applications such as pumps, fans and conveyors the speed is in the region the squirrel-cage rotor easily withstands, and efficiency is a priority in these applications. For this reason a standard squirrel-cage asynchronous motor is the more correct, more efficient and more economical choice. A solid rotor makes sense only in high-speed special applications where the speed exceeds the mechanical limit.

The massive (solid) steel rotor is the solution to a special niche in the asynchronous-motor world: high-speed applications where mechanical strength and balance take priority over efficiency. The correct choice comes from accurately defining the application's real speed, torque and endurance needs. For more information and assessment:
