In a bread factory or a pastry plant, the production line runs on dozens of electric motors with very different load characters. The dough kneading machine demands high, fluctuating torque; the belt drive of a conveyor oven must run continuously and steadily at low speed; flour sifting, aspiration and dust-collection systems require reliable protection in a dusty environment. This diversity makes the "buy one type of motor and fit it everywhere" approach impossible. Correct electric motor selection requires evaluating each application's load profile, speed need, ambient condition and hygiene requirement separately. In this article we examine motor selection in bakery, bread and pastry plants along the axes of dough kneading, the conveyor oven and auxiliary systems, offering a practical roadmap for correct procurement.

Electric motor selection in a bread and pastry plant

Dough Kneading Machines: High and Variable Torque

Kneading is one of the most demanding motor applications in a pastry plant. As the dough gains consistency the load rises, and the torque fluctuates each time the kneading arm turns the dough. For this reason the kneading motor must be able to deliver high torque both at start-up and in continuous duty, and must handle sudden load peaks without overheating.

  • Speed selection: Kneading is usually done at low-to-medium speed; in most machines a 4-pole motor (about 1500 rpm) is used together with a reducer. Some dual-speed kneaders require two speeds for fast and slow stages.
  • Torque characteristic: In this application, which requires high starting torque, a torque class suited to the load profile must be chosen; insufficient torque means strain and excessive current at start-up.
  • Frame: Due to continuous load and vibration, a cast iron frame is advantageous for durability and vibration damping.

We covered how to select a motor according to load profile in high-starting-torque, variable-load applications in our guide on at what load to run a motor and correct sizing.

Conveyor (Tunnel) Oven: Steady Continuity at Low Speed

In tunnel or conveyor ovens, the belt carries the product through the oven at a constant, precise speed. Here the motor's task is not high power but providing an extremely stable and steady motion at low speed. For this reason the belt drive is usually matched with a reducer (worm gear or bevel-helical).

  • Low output speed: Since the belt speed is low, the motor is connected not directly but through a reducer that lowers the speed. The correct reduction ratio determines the belt speed and the baking time.
  • Speed control: If variable speed is needed to adjust the baking time, the motor should be evaluated together with a frequency drive.
  • Temperature: The oven surroundings are hot; the motor should, where possible, be placed away from the hot zone of the oven in a position where it can draw cool air, and the insulation class should be chosen accordingly.

In selecting a geared drive, correctly matching the motor and the reducer is critical; on this subject our content on the efficient motor + reducer combination guides both efficiency and correct selection.

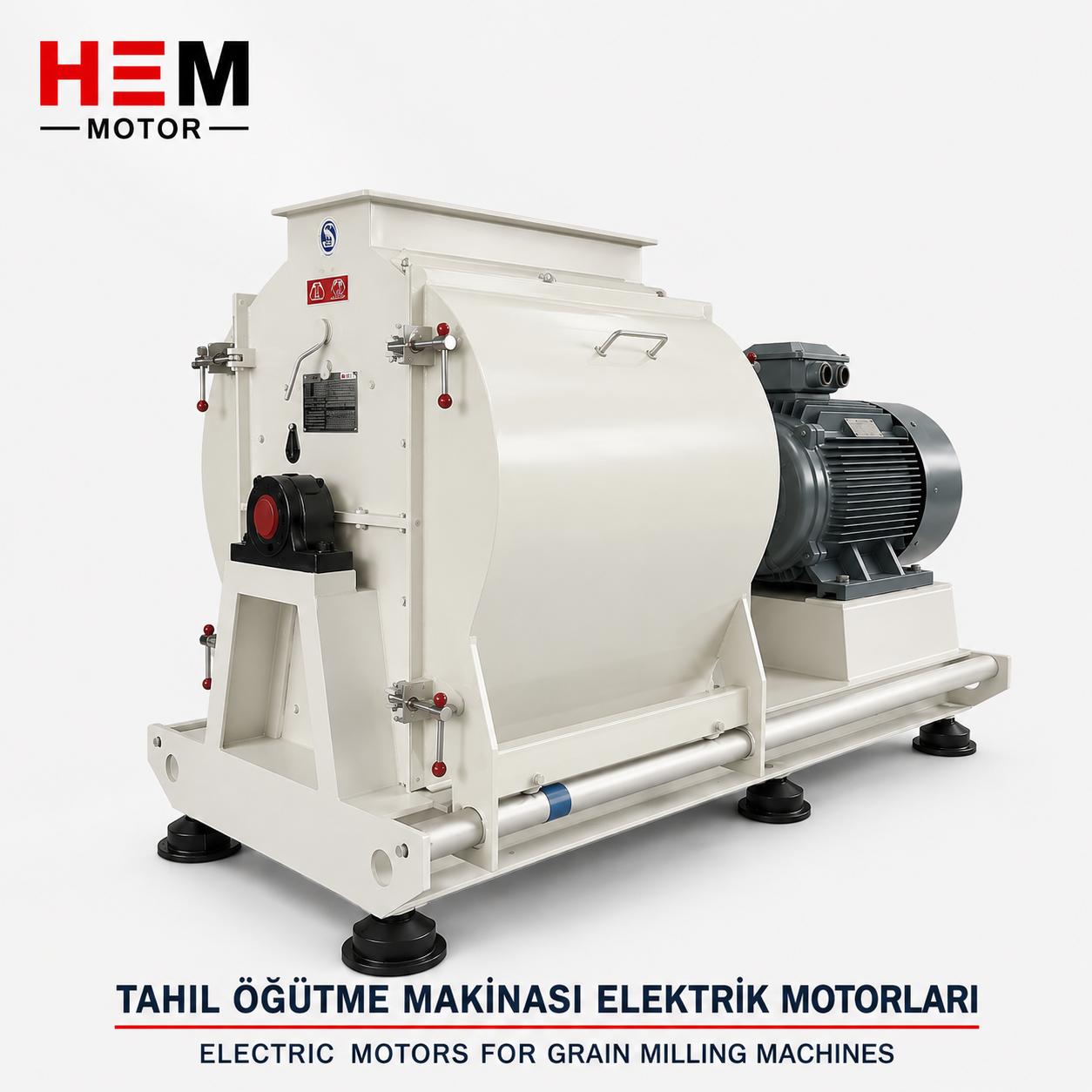

Conveyor tunnel oven belt drive and flour sifting motors

Flour Sifting, Aspiration and Dust Collection: Protection in a Dusty Environment

In every plant that processes flour there is flour dust in the air, and this dust threatens both the motor's cooling and its electrical safety. The motors of sifting, conveying augers, aspiration fans and dust-collection systems must be protected against dust.

  • IP protection: In a dusty environment, at least IP55 is standard; in areas with heavy dust and washdown, higher protection may be considered.
  • Aspiration and fan motors: Dust-collection fans run continuously; choosing an efficient (IE3/IE4) motor directly lowers the energy cost.
  • Hygiene: In food production, ease of cleaning is important; a smooth frame surface and correct mounting reduce dust accumulation.

Our content on feed factory and mill motors, where we examine motor selection in flour-mill and feed-grain processing applications in detail, also guides sifting and elevator drives. To strike the balance between hygiene and IP protection in food plants, our article on food factory electric motors: hygiene and IP protection is also valuable.

Mapping the Plant's Motors

When building or renovating a bread or pastry plant, a motor map of all the drive points should first be drawn up. For each point, the power, speed, reducer need, mounting type and IP protection are determined. This map makes both correct procurement and critical spare-motor planning easier.

  • Kneading, forming and pressing: high torque, cast iron frame, geared drive.
  • Conveyor and tunnel oven belt: low speed, geared, with VFD speed control if needed.
  • Sifting, aspiration, dust collection: dust-protected, efficient fan motors.
  • Cooling, packaging and transfer lines: general-purpose efficient motors.

When replacing an existing motor, an exact match from the nameplate before ordering is essential to prevent the wrong motor arriving; on this subject our guide on exact matching from nameplate data before ordering minimises the risk of error. At HEM Motor we supply kneading, conveyor-oven and auxiliary-system motors to bakery, bread and pastry plants with the advantage of stock and fast delivery; contact us for current electric motor prices.

Duty Type and Operating Regime: Continuous or Intermittent?

The motors in a pastry plant do not all run in the same regime; so when selecting the right motor, alongside power one must also consider the duty type (duty cycle). The duty type defines how long the motor is under load and how long it is idle or stopped, and it directly determines heating.

  • Continuous duty (S1): The conveyor-oven belt drive, aspiration fans and dust-collection motors usually run without interruption throughout the shift. These motors are sized for S1 continuous duty, and here efficiency translates directly into energy cost.
  • Intermittent periodic duty (S3/S4): Kneading, forming and pressing machines run in batches; a batch is kneaded, discharged, and a new batch loaded. Frequent stop-start and high starting current raise the heating of these motors; a choice suited to the duty type prevents premature ageing of the winding.
  • Short-time duty (S2): Some auxiliary drives (covers, dampers, adjustment mechanisms) run only briefly; for these, small but durable motors suffice.

A wrong duty-type choice causes the motor to overheat and fail in real use even when the nameplate power looks correct. To correctly classify the operating regime of every drive point in the plant, our guide on electric motor duty type (S1-S6) selection offers a practical framework. Especially for high-starting-torque, variable-load applications such as kneading, our content on motor power calculation for pumps, fans and conveyors is also a guide.

Hygiene, Cleaning and Food Safety

Bread and pastry production is a food process; therefore the motors must meet not only mechanical but also hygienic requirements. When flour dust, grease, sugar and moisture combine, deposits that are hard to clean form on the motor surface, and these deposits are both a hygiene risk and a layer that blocks the motor's cooling.

  • Cleanable surface: Smooth, easily wiped frame surfaces reduce the build-up of flour and dough residue; this matters for motors close to the production area.
  • Washdown resistance: In regularly washed areas the motor's IP protection class should be raised, and the terminal box and cable entries should be sealed against water.
  • Corrosion resistance: In humid and frequently washed environments the frame paint and surface protection should be chosen corrosion-resistant; otherwise rust harms both hygiene and motor life.
  • Correct mounting: The motor should be mounted in a position that does not accumulate dust and water, with the cooling fan inlet kept clear.

To strike the balance between hygiene and mechanical durability in food production, the choice of a geared drive also matters; on this subject our content on the hygienic gearmotor in food and beverage plants is directly applicable to the conveyor and mixer drives on the bread line as well.

Frequently Asked Questions

How many poles are suitable for a dough kneading machine?

In most kneading machines a 4-pole motor (about 1500 rpm) is used together with a reducer, and the low speed with high torque needed by the kneading arm is provided this way. Some dual-speed kneaders require two separate speeds for mixing and compressing the dough; in that case a dual-speed motor or a frequency-drive solution is considered. The correct choice depends on the machine's design speed and dough capacity.

Does the temperature around the oven affect the motor?

Yes. A high ambient temperature makes the motor's cooling harder and lowers the permitted load (derating). For this reason the oven belt-drive motor should, where possible, be placed away from the hot zone in a position where it can draw cool air; a suitable insulation class (F or higher) should also be chosen. In very hot environments a power margin is needed.

Which IP protection class is needed in a dusty environment?

In plants where flour dust is heavy, the motor should have at least IP55 protection; this class provides protection against dust and resistance to low-pressure water jets. In heavy washdown or very heavy dust conditions, higher protection may be considered. Periodic cleaning is also important so that dust does not clog the motor fan and cooling fins.
