When an electric motor on the production line is reported as "making a strange noise," "overheating" or "tripping the fuse," there are two decisions to make: what is the real cause of the fault and is repair or replacement more correct? This article was written for purchasing and operations managers; its aim is not to disassemble and repair the motor, but to help you read the symptom correctly and make a fast, economical decision. In an emergency, every hour lost means lost production; that is why most businesses' answer is fast replacement with an exact replacement motor from stock after the symptom is verified. To clarify your requirement, you can reach us through HEM Motor.

Below you will find first the symptoms (what the motor is telling you), then the possible causes, and finally the logic of the "repair or replace" decision.

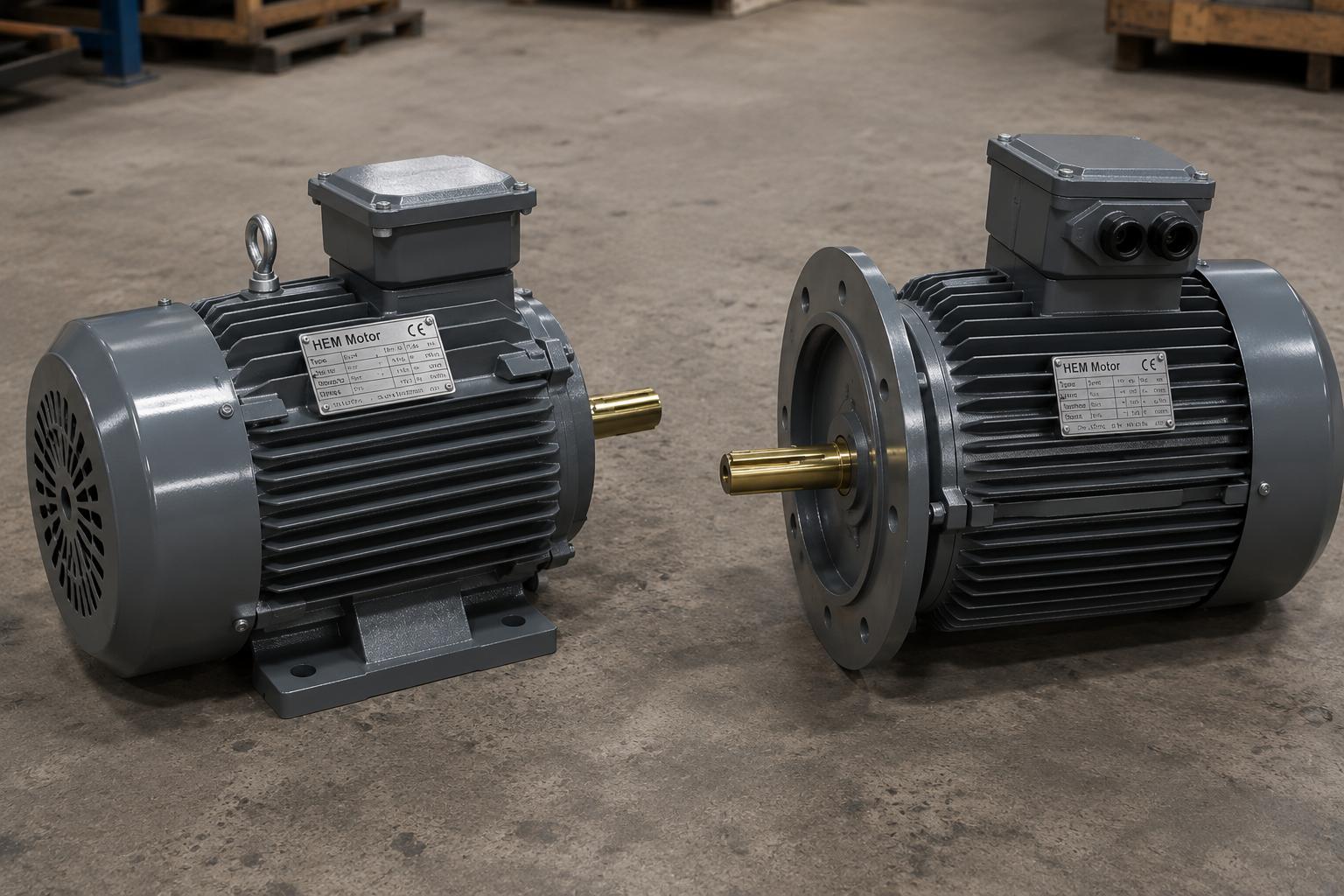

Elektrik motoru arıza belirtileri: ses, titreşim, ısınma kontrolü

Symptoms: What Is the Motor Telling You?

The great majority of faults do not arrive suddenly but signal in advance. There are five basic symptoms, and reading them all together leads to a correct diagnosis.

1. Noise and Vibration

A properly running motor gives a low, balanced hum. Clicking, whining, metallic friction or increasing vibration is mostly caused by the bearing; a loose foot/bolt, an unbalanced coupling or a bent shaft also amplify vibration. If continuously increasing vibration is neglected, it progresses to bearing seizure and shaft damage. We addressed why low-vibration operation is a sign of quality in our quiet and low-vibration operation in IE4 motors article.

2. Heating

The motor frame always heats up to some degree; however, becoming too hot to touch is not normal. Overheating can mean overload, insufficient ventilation, voltage imbalance, frequent starting or weakening of the winding insulation. Heating rapidly shortens insulation life; you can examine the role of the insulation class (F/H) in this regard in our winding and insulation class in IE3 motors article.

3. Current and Fuse Tripping

The motor drawing more than the nameplate current value is the clearest indicator of overload or mechanical strain. Frequent fuse/thermal tripping points to phase loss, a tendency to short circuit or a starting problem. At this point, the correct protection equipment (thermal, motor protection circuit breaker) is critically important; our electric motor protection equipment article explains what should be requested together when buying.

4. Smell and Color Change

A burnt/sharp insulation smell indicates that the winding has overheated and the insulation has begun to deteriorate; this is a warning to be taken seriously. Darkening in the terminal box and discoloration on the motor frame are also traces of thermal strain.

5. Performance Drop

The machine slowing down, struggling at the initial start, or a visible drop in speed under load is also a symptom. A slight drop in speed as the load increases is normal in asynchronous motors; however, a marked and increasing drop can be a sign of a fault. To distinguish normal behavior from a fault on this subject, our slip and actual speed in asynchronous motors article will guide you.

Causes: The Root Problem Behind the Symptom

After reading the symptom, let us look at the most frequently encountered root causes.

Bearing Wear and Lubrication

A significant portion of faults are bearing-related. Insufficient or wrong lubrication, contamination, excessive radial/axial load and vibration shorten bearing life. We detailed the effect of a quality bearing and correct bearing structure on lifespan in our bearing and bearing life in cast iron motors article.

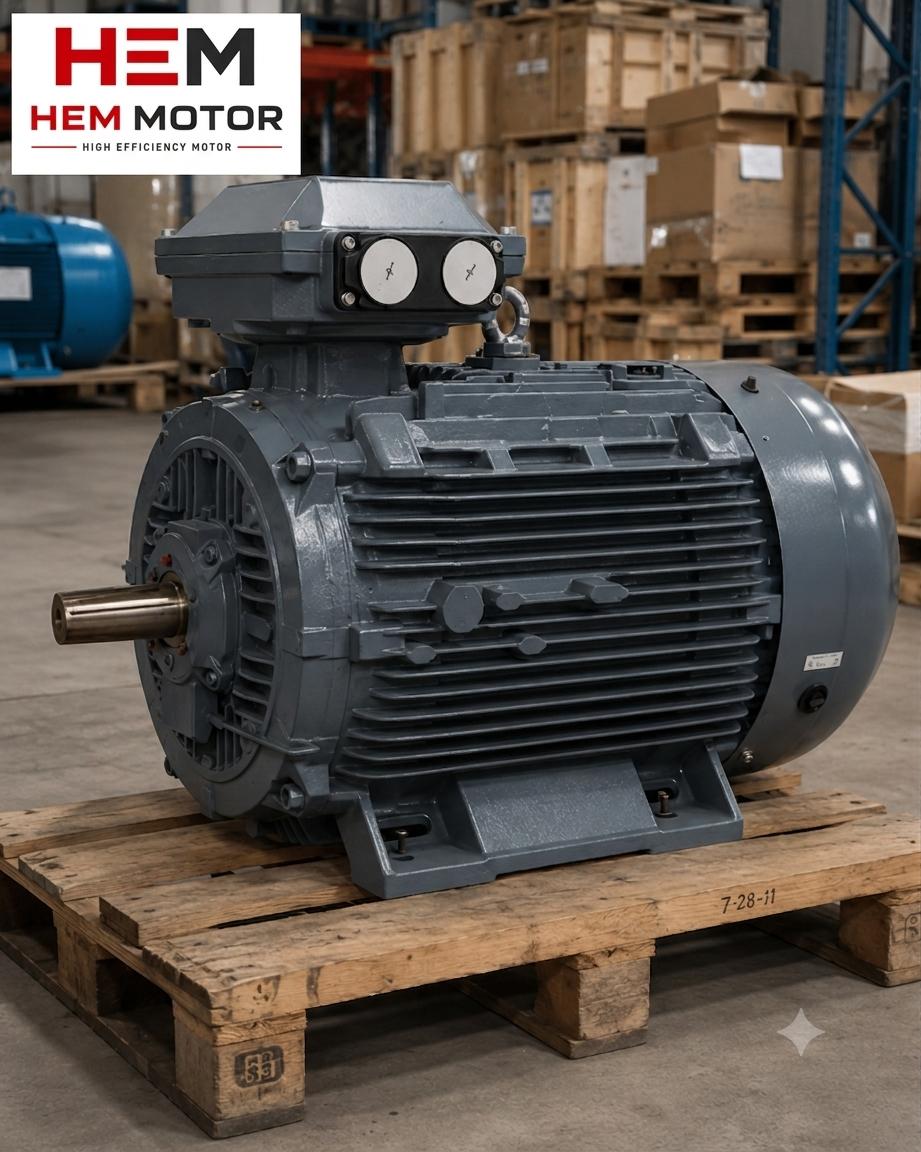

Motor arıza nedenleri: rulman, aşırı yük ve gerilim dengesizliği

Overload and Wrong Sizing

If the motor was selected below the machine's real load requirement, it is constantly strained, heats up and its life shortens. We gathered frequently encountered selection mistakes and correct sizing in our mistakes made when buying an electric motor article.

Voltage Imbalance and Phase Loss

In a three-phase industrial electric motor, voltage imbalance between phases leads to unbalanced current and overheating; the loss of one phase (burnt fuse, loose connection) can burn the motor quickly. Such problems generally start on the supply/panel side, while the motor experiences the consequence.

Lubrication, Contamination and Environmental Conditions

Dust, moisture and an aggressive environment disrupt cooling and wear down insulation. The IP protection class and frame material are decisive at this point; for open-field and corrosive environments, you can look at our corrosion protection in cast iron motors article.

Repair or Replace? The Decision Logic

This is the real commercial question. The generally accepted practice is this: for small-frame motors (roughly frame 100 and below), rewinding/repair is often not economical; replacing with a new motor makes more sense. The reasons are:

  • After rewinding, the motor generally does not return to its original efficiency; the efficiency class can drop during rewinding, which means permanent energy loss.
  • Repair time is uncertain; production stops. An exact replacement motor from stock, on the other hand, is commissioned the same day/next day.
  • The remaining life of the old motor has shortened; the same motor can break down again in a short time.

For high-power, special or expensive motors, repair can be considered; but here too, efficiency loss and downtime cost must be taken into account. We addressed the rewinding cost, efficiency loss and stock advantage dimensions of this decision in detail in our rewind a motor or buy a new one article; on this page we do not repeat that article's cost comparison but look at the decision from the symptom-diagnosis side.

The most effective way to prevent recurrence of the fault is regular inspection. We planned which inspection should be done at what frequency in our electric motor maintenance and periodic inspection schedule article; that article completes the subject from the preventive maintenance angle, while here we focus on the moment of failure.

When you decide on replacement, choosing the right replacement from the nameplate information is vital. In the HEM Motor range, there is a wide stock led by Standard Electric Motors and Cast Iron Frame Electric Motors; you can examine all options from our electric motors category, or for failure/replacement-focused content, from our guide blog section.

From Symptom to Diagnosis: Quick Decision Table

To make a quick decision in the field, it helps to match symptoms with the probable cause. The following logic helps you determine which direction to proceed:

  • Metallic/clicking noise from a single point + vibration → most likely the bearing; if caught early it can be solved by replacing the bearing, but in a small-frame motor complete replacement is often more economical.
  • The frame overheats but the noise is normal → first check the load, ventilation and voltage imbalance; if the problem is on the supply side, replacing the motor will not solve it.
  • Burnt smell + fuse tripping → the winding insulation is being damaged; this motor is generally a replacement candidate, and waiting increases the risk of fire/complete burnout.
  • Strain at initial start, marked slowing under load → may be overload, phase loss or a rotor problem; compare the real speed behavior with our slip and actual speed in asynchronous motors article.

This matching is not a definite diagnosis; its purpose is to help you gather the correct information when consulting an expert or sending us a quote request. In most cases, the fastest solution is to verify the symptom and then match and replace the motor exactly by its nameplate information.

Is the Root Cause of the Fault in the Motor or the System?

A common mistake is to blame the motor for every fault. Yet many a "motor fault" is actually the result of a problem outside the motor, and replacing the motor does not solve the problem; the new motor will also break down the same way in a short time. For this reason, before the replacement decision, the system should also be reviewed:

  • Supply side: A loose terminal, oxidized connection, unbalanced grid voltage or weak cabling heats and burns the motor. If the problem is on the panel/supply side, the motor is just the "victim."
  • Mechanical connection: Incorrect coupling adjustment, a tight belt, axial misalignment or a blocked machine overloads the motor and creates vibration. Setting up the shaft/coupling compatibility correctly is critical.
  • Load profile: If the machine's real requirement exceeds the power of the selected motor, the motor is constantly strained. In this case, the correct solution is to step up to a higher power.
  • Operating frequency: Very frequent stop-start (jog) operation heats the motor because of the starting current; in these applications a soft starter or drive may be needed.

For this reason, when replacing a faulty motor, it is essential to also eliminate the root cause; otherwise your investment erodes with recurring faults. To prevent these problems with correct commissioning, our motor commissioning and first startup checklist article will guide you.

Is It Possible to Prevent Faults? The Role of Preventive Maintenance

This article focuses on the moment of failure; however, the best fault is the one that never happens. The great majority of the symptoms listed above can be caught months in advance with regular and simple checks. Periodically listening to the bearing noise, measuring the frame temperature, monitoring the current drawn, tightening the terminal connections and keeping the ventilation blades clean prevents most sudden stoppages. We gathered which inspection should be done at what frequency and what to monitor in a schedule in our electric motor maintenance and periodic inspection schedule article; that article sets up the preventive side, while this article explains what to do when the job turns into a fault.

In practice, the most solid strategy is to combine the two: perform regular preventive maintenance on critical motors and, for unexpected faults that may still occur, keep an exact replacement motor ready in stock. This way you both lower the probability of a fault and, when it occurs, limit downtime to hours. HEM Motor supports both legs by quickly supplying the right replacement motor and by providing consultancy in spare motor planning. In heavy-duty and open-field applications, choosing a sturdier frame lowers the fault frequency from the start; you can examine the field behavior of a cast iron frame in our corrosion protection in cast iron frame motors article.

Summary: From Symptom to the Right Decision

The path to follow when faced with an electric motor fault is actually clear. First read the symptom correctly: noise and vibration generally point to the bearing, overheating to a load or supply problem, frequent fuse tripping to overload or phase loss, and a burnt smell to damaged winding insulation. Then investigate the root cause of this symptom; the problem may not always be in the motor, and the supply and mechanical connection can be at least as much to blame as the motor. After the root cause is clarified, make the repair-replace decision: in small-frame motors and in cases where efficiency loss/downtime is expensive, replacement with a new motor is generally the most correct choice. In the final step, make sure the incoming motor matches the existing motor exactly; this is guaranteed with correct nameplate information.

Businesses that apply these four steps correctly are freed from both unnecessary repair costs and long production stoppages. As HEM Motor, at the moment of a fault we both guide you on the correct diagnosis and supply the replacement motor you need quickly and with a clear quote; this way your line runs again in the shortest time.

Downtime Cost: The Invisible Bill of a Fault

The real cost of a motor fault is often not the motor itself but the production it stops. An unexpected stoppage on a crusher line, a filling belt or a main pump means hours of lost production, delayed orders and sometimes chained stoppages. That is why the "we'll deal with it when it breaks" approach is expensive on critical lines. We addressed this cost and ways to reduce it on the crusher side in our motor failure and downtime cost in a crusher plant article, and we explained the emergency replacement process on the conveyor side with a checklist in our conveyor belt motor emergency replacement article.

The most effective way to lower the downtime risk is to plan a spare/replacement motor in advance for critical powers. We gathered which powers should be kept in stock in our critical spare motor list article. This way, when a fault arrives, instead of waiting days, you can commission the ready motor the same day.

The Right Replacement: Preventing the Wrong Motor from Arriving

The most critical step after deciding on replacement is that the incoming motor matches the existing motor exactly. The wrong frame size, wrong shaft diameter, wrong flange or wrong speed makes it impossible to install the motor and lengthens the process. To prevent this, the power (kW), speed (rpm), frame size, mounting type (B3/B5/B35) and shaft diameter information on the motor nameplate must be conveyed completely. We explained this matching step by step in our prevent the wrong motor from arriving article, and we detailed shaft and key compatibility in our motor shaft diameter and key dimensions article. With the correct information, whatever your old brand, an equivalent HEM motor is quickly found.

Frequently Asked Questions

My motor is heating up but running; should I replace it immediately?

First have the load, ventilation and supply voltage checked; heating is often caused by overload or voltage imbalance. If there is a burnt smell and continuously increasing heat, the insulation is being damaged; in this case, planning replacement without delay is the safest path.

I heard a bearing noise; how much time do I have before the motor seizes?

It is not possible to say this with a definite time; a bearing noise can last for weeks or progress to seizure within days. If it is running on a critical line, instead of waiting, adding an exact replacement motor to your stock/supply plan greatly reduces the downtime risk.

On what basis do I decide between repair and replacement?

The frame size, the motor's remaining life, the efficiency loss repair will bring and the production cost of downtime are decisive. In small-frame motors, replacement generally stands out, while in large/special motors, repair stands out depending on the case. For a clear decision, reach us with your motor nameplate information; let us determine the fastest and most economical solution together.
